Tables & Data Management

Overview

Tables are the core building blocks of data storage in CoconutDB. Every application stores its business information inside one or more tables, where each table represents a specific business entity such as Customers, Products, Orders, Employees, or Projects.

Unlike traditional database platforms, CoconutDB automatically generates a complete set of secure REST APIs for every table you create. This eliminates the need to manually develop CRUD operations, allowing developers to focus on application logic rather than backend infrastructure.

Each table supports customizable columns, multiple data types, indexing, Row-Level Security (RLS), version history, audit tracking, and automatic API generation.

Creating a Table

Creating a table is straightforward and requires no SQL knowledge.

To create a new table:

• Open the desired workspace.
• Navigate to '+ New'
• Click New Table.
• Enter a table name.
• Provide an optional description.
• Define one or more columns.
• Configure the required column settings.
• Click Save.

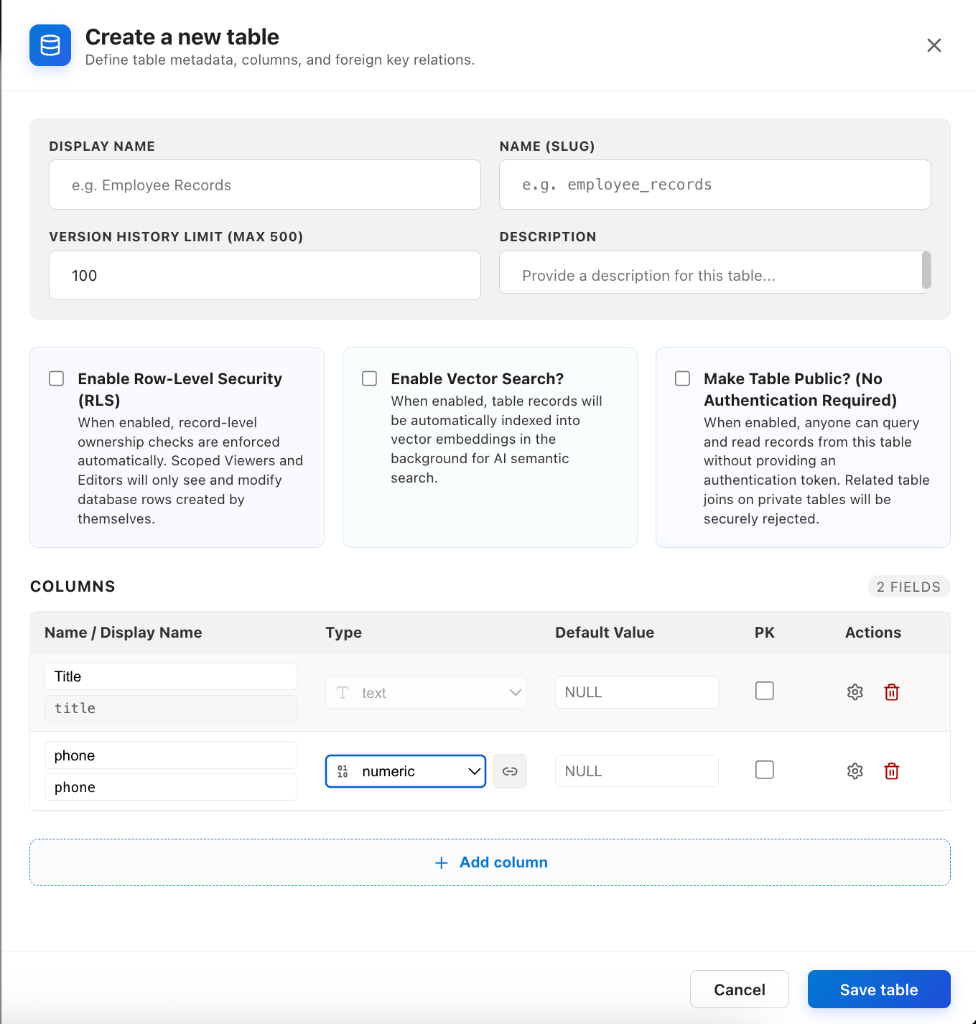

Create table form with metadata fields, security configurations (RLS, Vector Search, Public Access), and columns definition panel.

Once created, CoconutDB automatically provisions the database schema and generates the associated REST API endpoints.

Table Structure

Each table consists of:

• Table Name
• Description
• Columns
• Records
• Access Policies
• Auto-generated APIs
• Audit History

A well-designed table should represent a single business entity and contain only the information related to that entity.

Column Configuration

Columns define the structure of your data.

When creating a column, you can specify:

• Column Name
• Data Type
• Required or Optional
• Unique Constraint
• Indexed Status

These settings determine how data is stored, validated, and queried.

Supported Data Types

CoconutDB provides several built-in data types to support different kinds of application data.

Numeric Types

Text & JSON Types

Date & Time Types

Boolean, UUID & Spatial Types

Enumerated Types

Selecting the appropriate data type ensures data consistency and improves application reliability.

Column Options

Each column can be configured with additional options to improve data quality and performance.

Is Nullable

Allows the column to store NULL (empty) values.

Use when: The field is optional (e.g., Middle Name, Remarks).

Is Unique

Ensures every value in the column is unique across all records.

Use when: Storing identifiers such as Email Address, Employee ID, or Product Code.

Is Indexed

Creates a database index to improve query performance for searches, filters, and sorting.

Use when: The column is frequently used in search or filter operations.

Define as Array

Allows the column to store multiple values of the same data type.

Use when: Storing tags, skills, categories, or multiple phone numbers.

Is Masked

Masks sensitive data when displayed to unauthorized users, protecting confidential information.

Use when: Storing passwords, API keys, credit card numbers, Aadhaar/PAN numbers, or other sensitive data.

What is Row-Level Security (RLS)?

Row-Level Security is a database security paradigm that controls which rows in a table are visible or modifiable by a given user or client request.

Instead of traditional table-level permissions (where a user can either read the entire table or nothing), RLS applies a logical filter to every query executed against the table. The database engine evaluates this filter dynamically for each row based on the security context of the active request.

In CoconutDB:

• RLS policies are represented as SQL Boolean Expressions evaluated inside PostgreSQL USING constraints.
• Whenever a query is run, the engine appends the RLS clause to the statement automatically.
• Only rows matching the boolean condition (i.e. where the filter evaluates to true) are fetched, updated, or deleted.

Setting Up an RLS Policy

When creating or configuring policies via the RLS Drawer, you write a standard SQL condition that refers to the table's fields and the active user's credentials.

Accessing the Active User Context

To build contextual authorization rules, CoconutDB provides access to the following built-in database functions and variables mapping the active user:

SQL Dry-Run Verification

Before registering or applying a new RLS policy, the CoconutDB backend performs a compilation dry-run check.

To prevent invalid expressions (such as syntax errors, type mismatches, or references to columns that do not exist) from breaking production queries:

• The backend starts a database transaction.
• It compiles the proposed expression into a temporary SQL statement.
• It runs a mock query executing the constraint against the physical PostgreSQL table.
• It immediately rolls back the transaction.

If the dry-run check fails, the API returns a detailed 400 Bad Request containing the specific database engine compiler error, ensuring only syntactically sound and valid policies are registered.

Key RLS Expression Patterns

Below are the most common, secure, and production-tested patterns used to restrict access based on roles, soft-deletion state, subscriptions, and cross-table references.

Pattern A: Soft-Deletion Filtering

Ensures that soft-deleted items (where deleted_at is populated) are automatically excluded from lists.

deleted_at IS NULL

Pattern B: Workspace User Roles Check

Verifies if the active user belongs to the project and holds a specific system role (e.g. role_id = 1 for Administrator, role_id = 2 for Editor, etc.) within the project_users table.

auth.uid() IN (
  SELECT user_id
  FROM project_users
  WHERE project_id = record.project_id
    AND role_id = 1
)

Pattern C: Tenant Access Checks

Restricts row operations so that a user can only interact with rows belonging to their corresponding tenant.

EXISTS (
  SELECT 1
  FROM tenant_members tm
  WHERE tm.tenant_id = record.tenant_id
    AND tm.user_id = auth.uid()
    AND tm.active = true
)

Pattern D: Subscription Validation (Cross-Table Reference)

Blocks reads or writes if the corresponding tenant does not have an active subscription package or if the subscription has expired.

EXISTS (
  SELECT 1
  FROM subscriptions s
  WHERE s.tenant_id = record.tenant_id
    AND s.status = 'active'
    AND now() < s.expires_at
)

Pattern E: Feature Flag Checks

Allows queries only if a specific feature flag (e.g., document_access) is enabled for the workspace tenant.

EXISTS (
  SELECT 1
  FROM feature_flags f
  WHERE f.tenant_id = record.tenant_id
    AND f.feature_name = 'document_access'
    AND f.enabled = true
)

Pattern F: Region Restrictions with Admin Bypass

Forces local regional constraints on rows (e.g. data residency rules) but bypasses the check if the user is a Global Administrator.

record.region = current_setting('app.region', true)
OR EXISTS (
  SELECT 1
  FROM roles r
  WHERE r.user_id = auth.uid()
    AND r.role = 'GlobalAdmin'
)

More Boolean Expression Examples

Here are additional common real-world SQL configurations you can copy, paste, and modify in the RLS Drawer:

1. Direct Creator Ownership (Self-Service)

Allows users to access only records they created.

created_by = auth.uid()

2. Public Read-Only, Admin-Only Write

Allows any user (including guest/anonymous users) to read records, but limits write operations (INSERT, UPDATE, DELETE) to administrators.

For SELECT Policy:

true

For WRITE Policy:

auth.uid() IN (
  SELECT user_id
  FROM project_users
  WHERE project_id = record.project_id
    AND role_id = 1
)

3. Department-Level Collaboration (Team Scope)

Allows employees to view or edit records created by anyone belonging to the same department.

EXISTS (
  SELECT 1
  FROM employee e_current
  JOIN employee e_record ON e_current.department_id = e_record.department_id
  WHERE e_current.user_id = auth.uid()
    AND e_record.id = record.owner_employee_id
)

4. Sensitive Threshold Filtering

Only workspace Administrators (role 1) are allowed to view records with budgets exceeding $100,000.

record.budget <= 100000
OR auth.uid() IN (
  SELECT user_id
  FROM project_users
  WHERE project_id = record.project_id
    AND role_id = 1
)

5. Time-Window Based Enforcement

Restricts actions (like deletions or inserts) to standard business hours (Monday to Friday, 9:00 AM to 5:00 PM server time).

EXTRACT(DOW FROM now()) BETWEEN 1 AND 5
AND EXTRACT(HOUR FROM now()) BETWEEN 9 AND 17

Composition (Combining Constraints)

You can chain multiple patterns together using standard SQL logical operators (AND, OR, NOT) to construct granular, conditional filters.

Example: Secure Document Access Policy

-- 1. Exclude soft-deleted rows
deleted_at IS NULL
-- 2. AND enforce tenant membership
AND EXISTS (
  SELECT 1
  FROM tenant_members tm
  WHERE tm.tenant_id = record.tenant_id
    AND tm.user_id = auth.uid()
    AND tm.active = true
)
-- 3. AND verify active subscription status
AND EXISTS (
  SELECT 1
  FROM subscriptions s
  WHERE s.tenant_id = record.tenant_id
    AND s.status = 'active'
    AND now() < s.expires_at
)
-- 4. AND restrict by region residency or admin role
AND (
  record.region = current_setting('app.region', true)
  OR EXISTS (
    SELECT 1
    FROM roles r
    WHERE r.user_id = auth.uid()
      AND r.role = 'GlobalAdmin'
  )
)

This composed policy guarantees that even if a developer queries documents globally, the query automatically strips records that are deleted, belong to other tenants, lack active subscriptions, or violate data residency regulations (unless the request is made by a Global Admin).

Managing Records

Once a table has been created, records can be added through the CoconutDB user interface.

Click Add Record to open the record entry form.

After records have been created, they are displayed in a tabular grid where users can:

• View records
• Search records
• Sort records
• Filter records
• Reorder columns

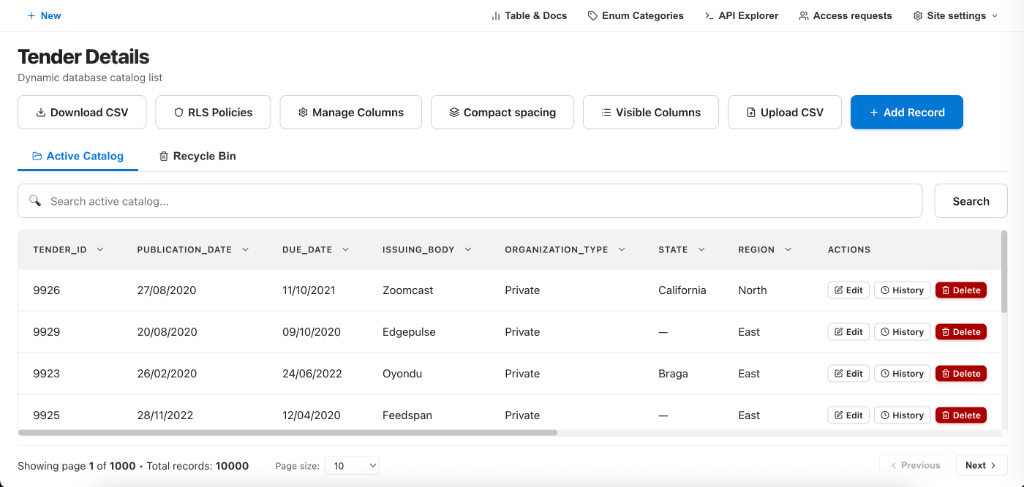

Database catalog list view showing active records in a tabular grid with search, filter, and pagination options.

This interface enables users to efficiently manage business data without requiring database knowledge.

Record Actions

Each record provides a set of actions for managing its lifecycle.

Edit

Updates an existing record while preserving its version history.

Soft Delete

Moves the record to the Recycle Bin without permanently removing it.

Soft-deleted records can be restored by Workspace Administrators.

Version History

Displays the complete change history for the selected record.

Version history includes:

• Who modified the record
• When the change occurred
• Previous values
• Updated values

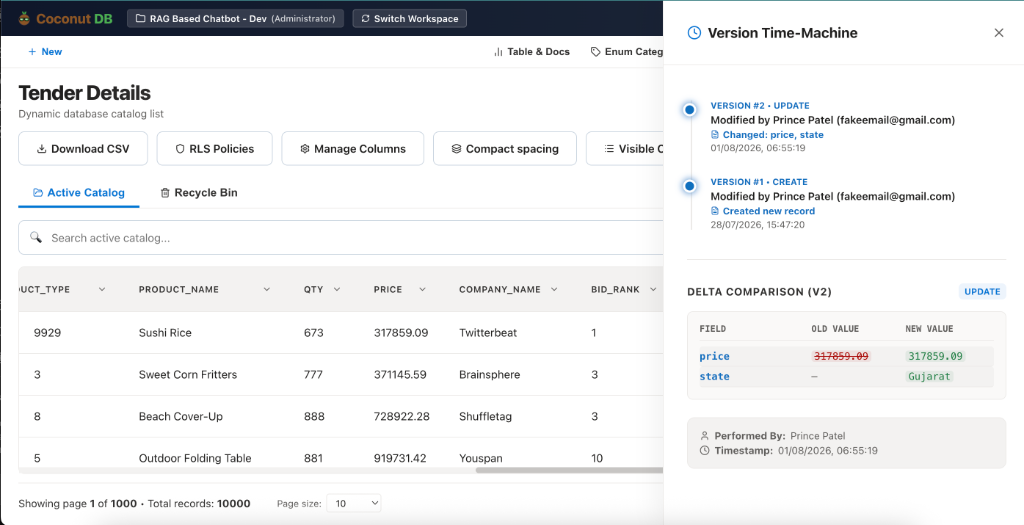

Version Time-Machine panel displaying historical records updates, delta comparison of values, author email, and change timestamp.

This provides complete traceability for data changes and supports audit requirements.

Managing Columns

Business requirements evolve over time.

CoconutDB allows Workspace Administrators to modify the database schema without manually writing migration scripts.

Administrators can:

• Add new columns
• Rename existing columns
• Update column settings
• Remove unused columns

Schema updates become available immediately after saving.

Dynamic CRUD & Query Engine API Reference

This section provides a detailed specification of the dynamic database table CRUD and Abstract Syntax Tree (AST) query engine endpoints in CoconutDB.

Global Headers Context

All API requests against dynamic resources expect the following header context to establish proper tenant sandboxing and client authorization:

1. JSON Relation Query (AST)

Method: POST | Path: /v1/:resource/query

Required Headers: X-HTTP-Method-Override: QUERY

Executes a structured JSON relation query parsing AST logic. Evaluates Row-Level Security (RLS) constraints, performs recursive relational joins (Lookups/Foreign Keys), applies pagination, sorting, and nested conditional filtering.

{
  "from": "leads",
  "select": [
    { "field": "id" },
    { "field": "first_name" },
    { "field": "last_name" },
    {
      "relation": "department",
      "select": [
        { "field": "name" },
        { "field": "code" }
      ]
    }
  ],
  "where": {
    "and": [
      { "status": { "eq": "Active" } },
      { "created_at": { "gte": "2026-01-01T00:00:00Z" } }
    ]
  },
  "orderBy": [
    { "field": "created_at", "direction": "DESC" }
  ],
  "limit": 10,
  "page": 1
}

{
  "success": true,
  "data": [
    {
      "id": "019fbaf9-45e1-7d67-99c1-fca53fe1e31d",
      "first_name": "John",
      "last_name": "Doe",
      "department": {
        "name": "Engineering",
        "code": "ENG"
      }
    }
  ],
  "pagination": {
    "total": 142,
    "page": 1,
    "limit": 10,
    "pages": 15
  }
}

2. Database-Level Grouped Aggregations (AST)

Method: POST | Path: /v1/:resource/query

Required Headers: X-HTTP-Method-Override: QUERY

Group records by specified columns and compute database-level aggregates such as count, avg, min, max, and sum. Supports having filtering on computed metrics.

{
  "from": "leads",
  "where": {
    "and": [
      { "is_deleted": { "eq": false } }
    ]
  },
  "groupBy": ["status", "department.name"],
  "aggregates": [
    { "function": "count", "field": "id", "alias": "leadCount" },
    { "function": "avg", "field": "score", "alias": "avgScore" }
  ],
  "having": {
    "leadCount": { "gt": 5 }
  },
  "orderBy": [
    { "field": "leadCount", "direction": "DESC" }
  ],
  "page": 1,
  "limit": 10
}

{
  "success": true,
  "data": [
    {
      "status": "Contacted",
      "department": {
        "name": "Sales"
      },
      "leadCount": 18,
      "avgScore": 84.5
    }
  ],
  "pagination": {
    "total": 1,
    "page": 1,
    "limit": 10,
    "pages": 1
  }
}

3. Retrieve One Record

Method: GET | Path: /v1/:resource/:id

Fetches a single record by its primary key UUID. Automatically resolves and formats joined enum categories or inline lookups.

{
  "success": true,
  "data": {
    "id": "019fbaf9-45e1-7d67-99c1-fca53fe1e31d",
    "first_name": "Jane",
    "last_name": "Smith",
    "status": "Active",
    "version": 1,
    "created_at": "2026-07-31T12:00:00.000Z",
    "updated_at": "2026-07-31T12:00:00.000Z"
  }
}

4. Create Record

Method: POST | Path: /v1/:resource

Validates schema constraints (nullability, length, data types, unique indexes) and creates a new database row. Generates default audit tracking fields.

{
  "first_name": "Alice",
  "last_name": "Cooper",
  "email": "alice@cooper.local",
  "score": 95
}

{
  "success": true,
  "data": {
    "id": "019fbaff-72a3-76cd-95ba-ccbdbe0a7ba2",
    "first_name": "Alice",
    "last_name": "Cooper",
    "email": "alice@cooper.local",
    "score": 95,
    "version": 1,
    "created_at": "2026-08-01T02:00:00.000Z"
  }
}

5. Partial Update (Optimistic)

Method: PATCH | Path: /v1/:resource/:id

Partially updates fields on an existing record. To prevent write conflicts in concurrent environments, users can optionally include a query check confirming version history snapshots.

{
  "score": 98,
  "status": "Converted"
}

{
  "success": true,
  "data": {
    "id": "019fbaff-72a3-76cd-95ba-ccbdbe0a7ba2",
    "first_name": "Alice",
    "last_name": "Cooper",
    "score": 98,
    "status": "Converted",
    "version": 2,
    "updated_at": "2026-08-01T02:05:00.000Z"
  }
}

6. Soft Delete Record

Method: DELETE | Path: /v1/:resource/:id

Sets the is_deleted column to true or populates a deleted_at timestamp. Soft-deleted records are automatically filtered out from normal select queries but preserved for audit/timeline recovery.

{
  "success": true,
  "message": "Record successfully moved to recycle bin."
}

7. Restore Soft-Deleted

Method: POST | Path: /v1/:resource/:id/restore

Recovers a soft-deleted item from the recycle bin, clearing the deletion flag and incrementing its audit version.

{
  "success": true,
  "message": "Record successfully restored to active state."
}

8. Hard Delete (Admin Only)

Method: DELETE | Path: /v1/:resource/:id

Query Parameter: hard=true

Permanently purges a record from the database table. Requires Administrator or system scopes.

{
  "success": true,
  "message": "Record permanently deleted from storage."
}

9. Bulk Create / Upsert

Method: POST | Path: /v1/:resource/bulk

Performs transactional bulk inserts of arrays of items. Optional upsert modes execute conflict updates on matching index fields.

{
  "items": [
    { "first_name": "Charlie", "last_name": "Brown" },
    { "first_name": "Snoopy", "last_name": "Beagle" }
  ]
}

{
  "success": true,
  "count": 2,
  "inserted_ids": [
    "019fbbb1-7a6c-72df-ba8c-3221ea3a6ba2",
    "019fbbb1-7a70-73d0-bb2e-3324ec3be8ab"
  ]
}

10. Bulk Update

Method: PATCH | Path: /v1/:resource/bulk

Transactional update matching multiple items by primary key or conditions.

{
  "items": [
    { "id": "019fbbb1-7a6c-72df-ba8c-3221ea3a6ba2", "status": "Inactive" },
    { "id": "019fbbb1-7a70-73d0-bb2e-3324ec3be8ab", "status": "Active" }
  ]
}

{
  "success": true,
  "updated_count": 2
}

11. Bulk Soft Delete

Method: DELETE | Path: /v1/:resource/bulk

Moves an array of records to the recycle bin transactionally.

{
  "ids": [
    "019fbbb1-7a6c-72df-ba8c-3221ea3a6ba2",
    "019fbbb1-7a70-73d0-bb2e-3324ec3be8ab"
  ]
}

{
  "success": true,
  "deleted_count": 2
}

12. Advanced Search

Method: GET | Path: /v1/:resource/search

Query Parameters: q or search (text token matching), vector (boolean cosine-similarity search against embeddings).

Matches items based on text terms or semantic closeness vector metrics.

{
  "success": true,
  "data": [
    {
      "id": "019fbbb1-7a6c-72df-ba8c-3221ea3a6ba2",
      "first_name": "Charlie",
     }
  ]
}

13. Count Matching

Method: GET | Path: /v1/:resource/count

Query Parameters: Standard URI parameter filter key-value pairs (e.g. status=Active&score=gt:90).

Lightweight endpoint returning counts without body overhead.

{
  "success": true,
  "count": 42
}

14. Export CSV / JSON

Method: GET | Path: /v1/:resource/export

Query Parameters: format (csv or json, defaults to json).

Stream-dumps all matching records formatted cleanly. Ideal for spreadsheet integration.

Content-Type: text/csv
Content-Disposition: attachment; filename="export_leads_20260801.csv"

15. Version History Timeline

Method: GET | Path: /v1/:resource/:id/history

Returns all chronological versions of a record showing audit details (e.g., who changed which columns, when, and version increments).

{
  "success": true,
  "timeline": [
    {
      "version": 2,
      "updated_at": "2026-08-01T02:05:00.000Z",
      "updated_by": "019fa2d5-7723-74ed-a8cc-87afbe30faa7",
      "changes": {
        "score": { "old": 95, "new": 98 },
        "status": { "old": "Active", "new": "Converted" }
      }
    },
    {
      "version": 1,
      "updated_at": "2026-08-01T02:00:00.000Z",
      "updated_by": "019fa2d5-7723-74ed-a8cc-87afbe30faa7",
      "changes": null
    }
  ]
}

16. Snapshot Time-Machine

Method: GET | Path: /v1/:resource/:id/history/:versionNumber

Fetches the exact state of a record at a specific version index.

{
  "success": true,
  "data": {
    "id": "019fbaff-72a3-76cd-95ba-ccbdbe0a7ba2",
    "first_name": "Alice",
    "last_name": "Cooper",
    "score": 95,
    "status": "Active",
    "version": 1,
    "updated_at": "2026-08-01T02:00:00.000Z"
  }
}

17. Unique Column Filters

Method: GET | Path: /v1/:resource/filters

Aggregates all distinct values present in every table column. Primarily used to populate client dropdown filter panels dynamically.

{
  "success": true,
  "filters": {
    "status": ["Active", "Inactive", "Converted", "Contacted"],
    "department_name": ["Sales", "Engineering", "Operations"]
  }
}

These APIs follow a consistent structure, making it easy to integrate CoconutDB with web applications, mobile apps, automation platforms, and third-party systems.

Enterprise Features

Tables are designed for enterprise applications and include several built-in governance capabilities.

Automatic Version History

Every record modification is tracked, allowing administrators to review historical changes.

Soft Delete

Records are never immediately removed, reducing the risk of accidental data loss.

Row-Level Security

Restrict record visibility based on user identity or custom security policies.

Audit Trail

Every data modification is recorded to improve accountability and simplify investigations.

Automatic API Generation

Developers can immediately begin integrating applications without writing backend CRUD operations.

Best Practices

When designing tables, consider the following recommendations:

• Create one table for each business entity.
• Use meaningful table and column names.
• Choose the most appropriate data type for each field.
• Apply unique constraints where duplicate values are not permitted.
• Create indexes only for frequently searched columns.
• Enable Row-Level Security when data should be isolated between users.
• Regularly review version history and audit logs for critical business data.
• Avoid storing unrelated information in the same table.
